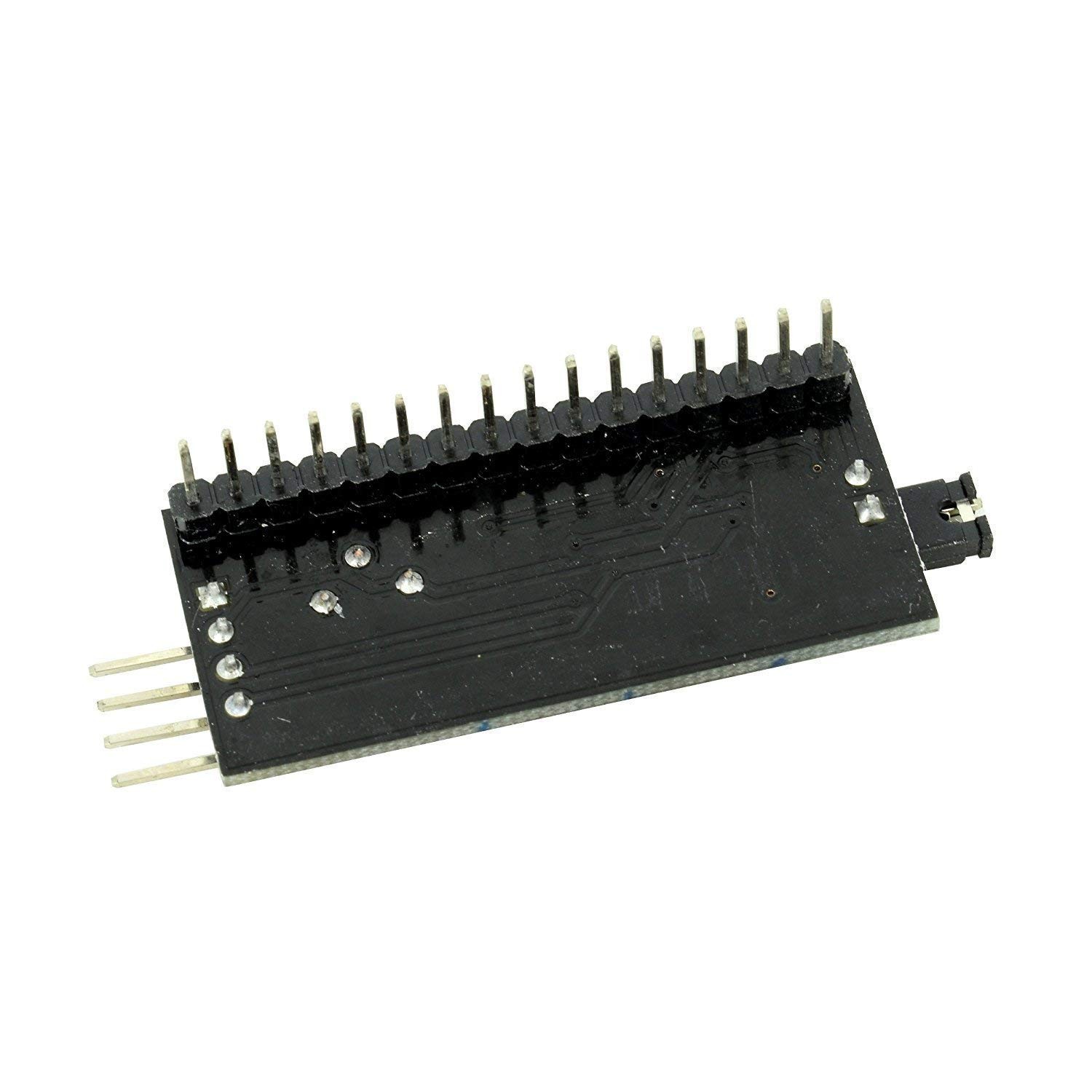

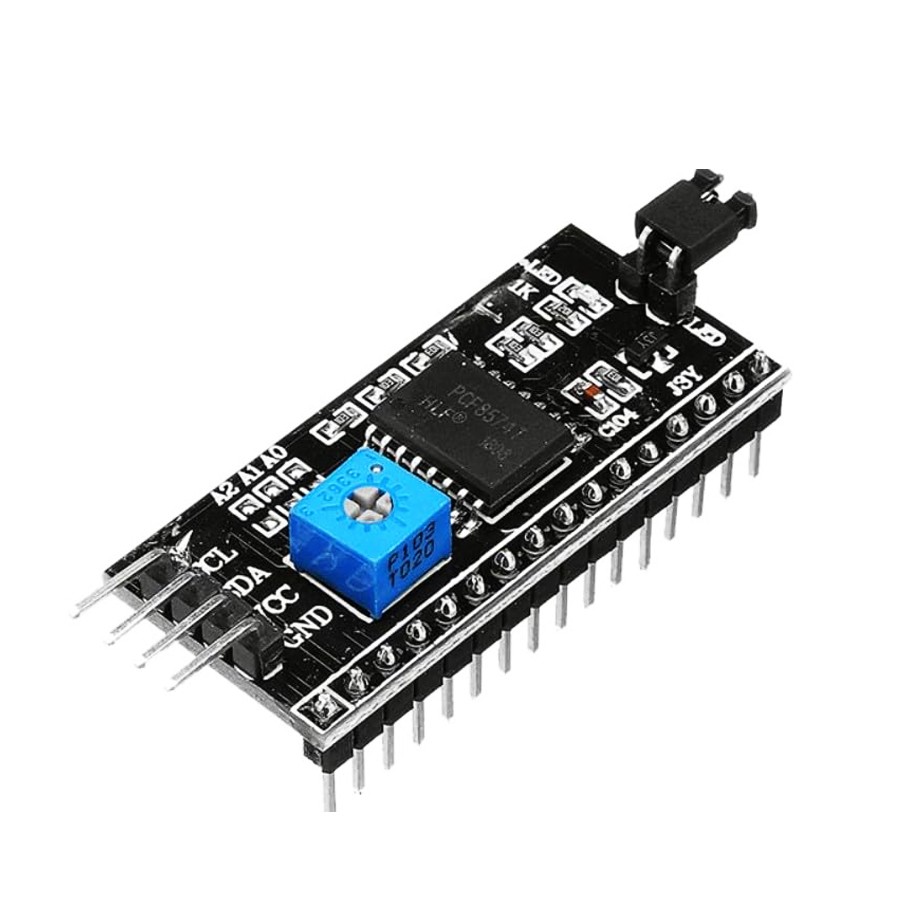

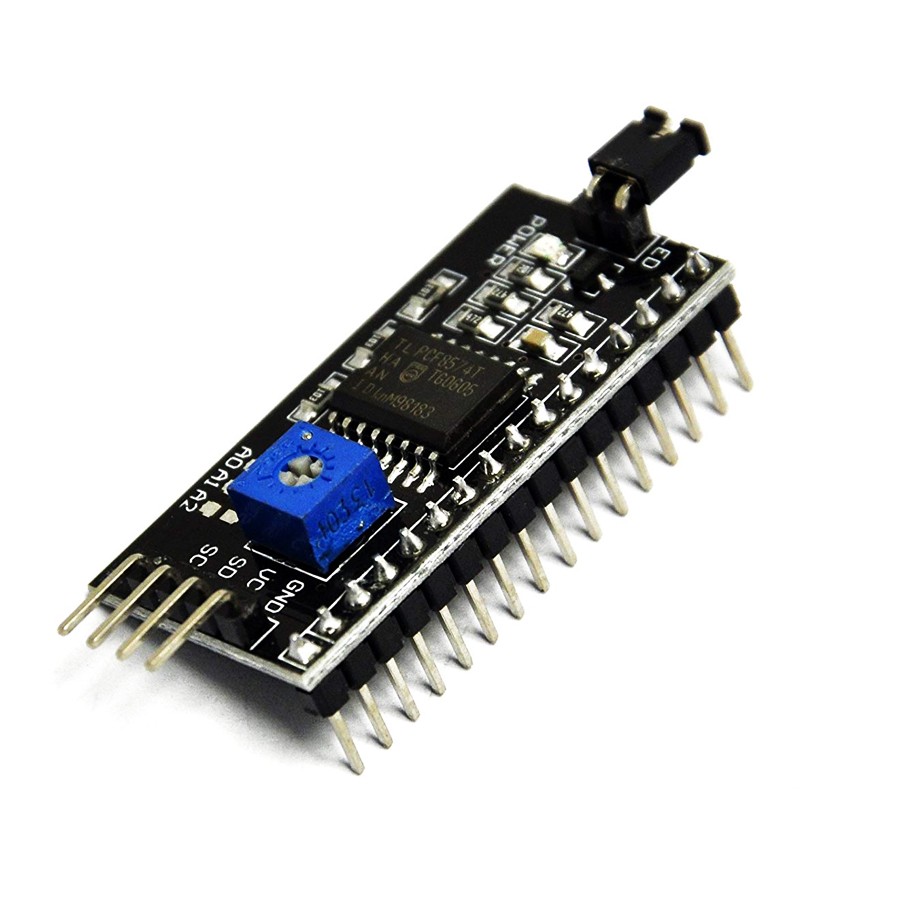

I2C LCD Adapter Module
Inhouse Product
-
৳120.00
Reviews & Ratings
Highlights:
- Converts Standard LCD to I2C Interface
- PCF8574 I/O Expander Based Design
- Uses Only 2 Microcontroller Pins
- Adjustable LCD Contrast
- Easy Soldering & Installation
- Compatible with Arduino, ESP32, Raspberry Pi & STM32
Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Description
I2C LCD Adapter Module একটি ছোট কিন্তু অত্যন্ত কার্যকর interface board, যা সাধারণ 16x2 (1602) এবং 20x4 (2004) Character LCD-কে I2C communication-এর মাধ্যমে নিয়ন্ত্রণ করার সুবিধা দেয়। এই module-এ ব্যবহৃত PCF8574 I/O Expander IC মাইক্রোকন্ট্রোলারের একাধিক GPIO pin ব্যবহারের প্রয়োজনীয়তা কমিয়ে মাত্র দুটি I2C pin (SDA & SCL) ব্যবহার করে LCD পরিচালনা করতে সক্ষম।
Module-টিতে একটি adjustable contrast potentiometer রয়েছে, যার মাধ্যমে LCD display-এর contrast সহজেই নিয়ন্ত্রণ করা যায়। এছাড়া backlight control support থাকায় display আরও সুবিধাজনকভাবে ব্যবহার করা যায়।
Arduino, ESP32, Raspberry Pi, STM32, AVR এবং অন্যান্য I2C-supported development board-এর সাথে সহজে ব্যবহারযোগ্য হওয়ায় এটি robotics, embedded systems, automation এবং DIY electronics projects-এর জন্য একটি জনপ্রিয় সমাধান।
⭐ Key Features
- Converts parallel LCD to I2C interface
- Based on PCF8574 I/O expander IC
- Saves valuable GPIO pins
- Supports 16x2 and 20x4 character LCDs
- Adjustable display contrast
- I2C communication for simple wiring
- Easy to solder and install
- Compact and lightweight PCB design
- Compatible with most microcontroller platforms
🤖 Applications
- Arduino LCD Display Projects
- ESP32 & ESP8266 Display Applications
- Raspberry Pi Projects
- Smart Home Automation
- Industrial Display Systems
- Embedded System Development
- Robotics Projects
- Digital Measurement Devices
- DIY Electronics
- Educational Projects
📊 Technical Specifications
| Specification | Details |
|---|---|
| Product Type | I2C LCD Adapter Module |
| Controller IC | PCF8574 / Compatible |
| Communication Interface | I2C |
| Operating Voltage | 3.3V – 5V DC |
| Compatible LCD Size | 16×2 (1602), 20×4 (2004) Character LCD |
| I2C Address | Default 0x27 or 0x3F (Version Dependent) |
| Contrast Adjustment | On-board Potentiometer |
| Backlight Control | Supported |
| Mounting | 16-Pin LCD Header |
📦 Package Includes
- 1 × I2C LCD Adapter Module
Note: LCD display is not included and must be purchased separately.
⚠️ Important Notes
- Compatible with most 1602 and 2004 character LCD modules featuring a standard 16-pin interface.
- The default I2C address may vary depending on the module version. Use an I2C scanner sketch if required.
- Soldering is required before attaching the module to the LCD.
- Product images are for reference only. Actual PCB color, component layout or markings may vary depending on the manufacturing batch.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
PRODUCT IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY. ACTUAL PRODUCT APPEARANCE, COLOR, PACKAGING AND COMPONENT LAYOUT MAY VARY DEPENDING ON THE MANUFACTURER AND PRODUCTION BATCH. |
