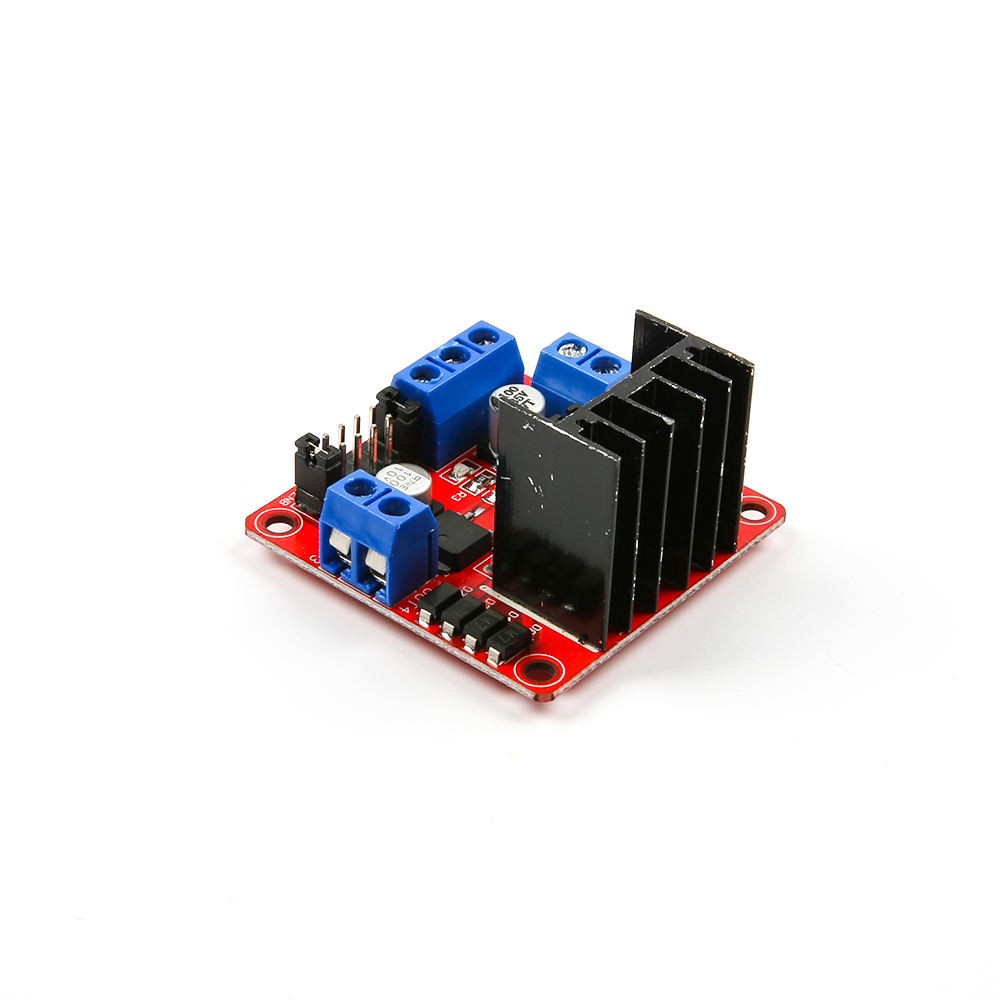

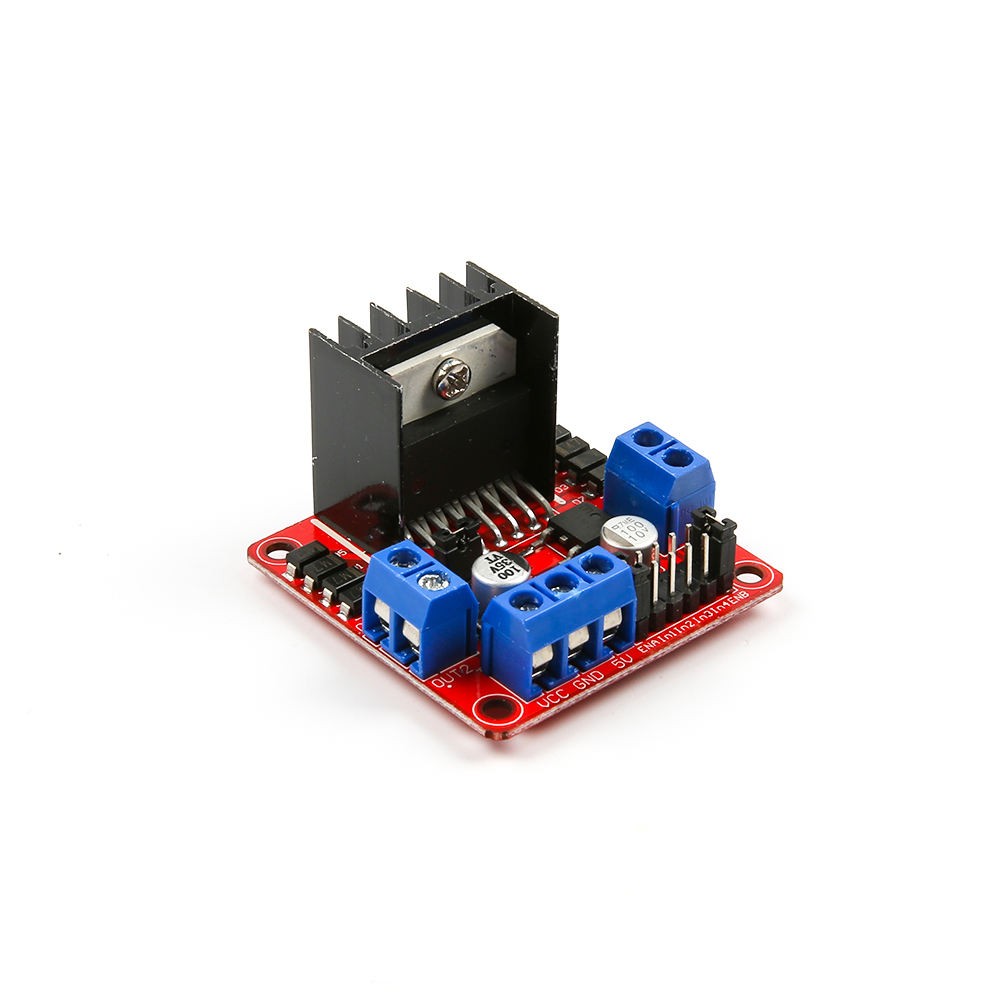

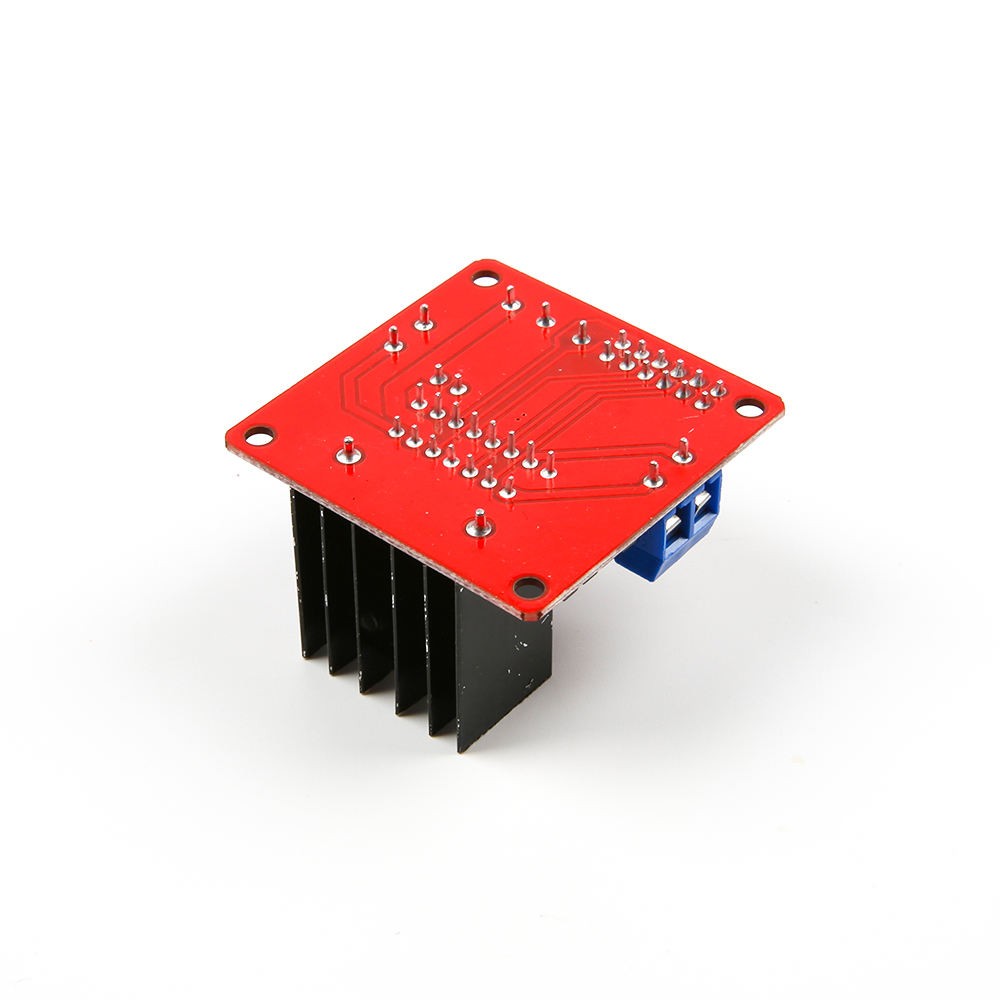

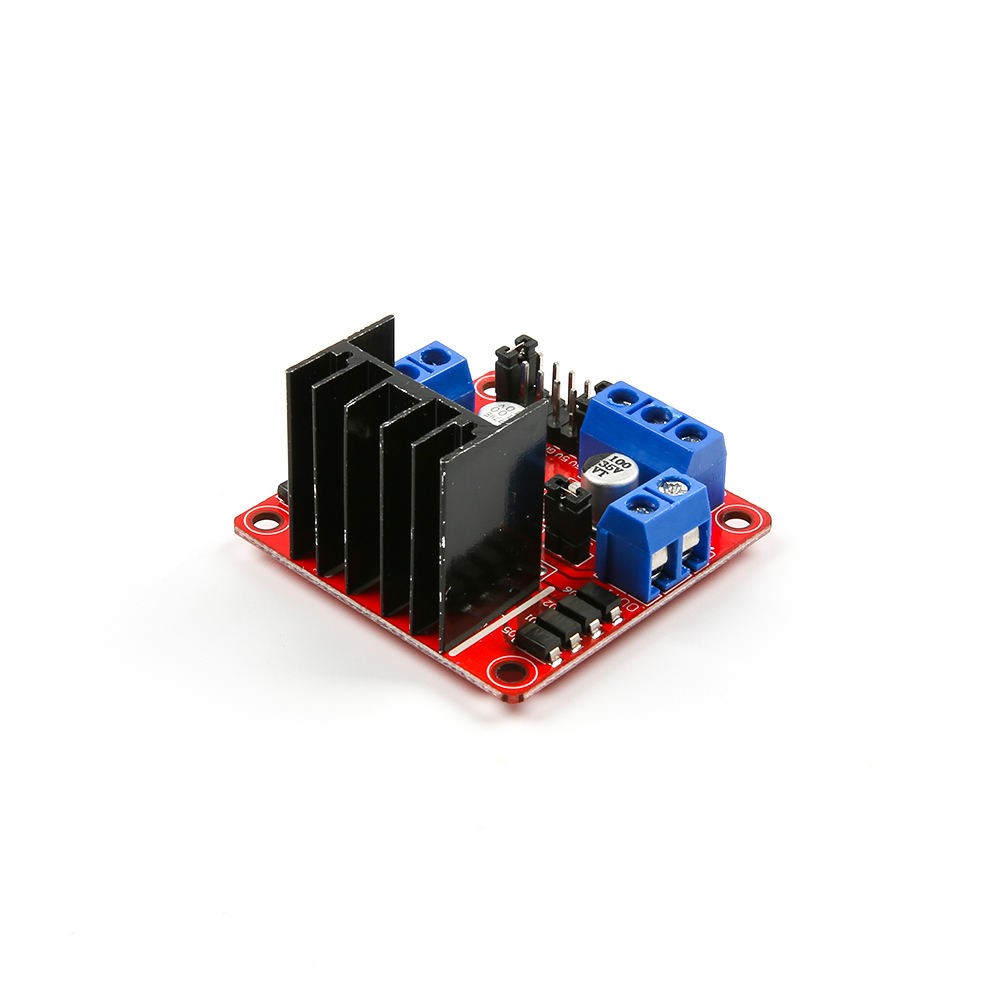

L298N H-Bridge Dual Motor Driver, Stepper Motor Driver

(0 reviews)
Add to Wishlist Add to compare
Brand
China

Inhouse Product

Price
৳190.00   / 1
Quantity
Total Price
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description

 Key Features

  • Dual H-Bridge L298N Driver IC
  • Independently Control 2 DC Motors
  • Supports 1 Bipolar Stepper Motor
  • Forward & Reverse Direction Control
  • PWM Based Speed Control
  • Built-in 5V Voltage Regulator
  • Onboard Heat Sink for Better Cooling
  • Compatible with Arduino, ESP32, Raspberry Pi & STM32

 Applications

  • Line Follower Robot
  • Obstacle Avoiding Robot
  • Smart Robot Car
  • Robotic Arm Projects
  • Conveyor Automation Systems
  • DIY Motor Control Projects
  • Stepper Motor Control
  • Educational Electronics Projects

Technical Specifications

ParameterValue
Driver ICL298N Dual H-Bridge
Motor Channels2 DC Motors / 1 Stepper Motor
Logic Voltage5V
Motor Supply Voltage5V ~ 35V
Maximum Input VoltageUp to 46V
Drive CurrentUp to 2A per Channel
Peak Current2A
Logic Current0 ~ 36mA
Maximum Power25W
PWM SupportYes
Onboard 5V RegulatorYes
Heat SinkIncluded
Operating Temperature-25°C to +130°C
Module SizeApprox. 43 × 43 × 27 mm

Pins Details :

Out 1: Motor A Output Lead (+)
Out 2: Motor A Output Lead (-)
Out 3: Motor B Output Lead (+)
Out 4: Motor B Output Lead (-)
12V (VMS): Main Motor Power Supply Input Terminal (Accepts 5V to 35V DC)
GND: Common Power and Logic Ground Connection
5V: 5V Logic Input/Output Terminal (Acts as an output if the 5V regulator jumper is active)
EnA: Enable and PWM Input for Motor A (Remove jumper for software speed loop tuning)
In1: Directional Control Logic Input 1 for Motor A
In2: Directional Control Logic Input 2 for Motor A
In3: Directional Control Logic Input 3 for Motor B
In4: Directional Control Logic Input 4 for Motor B
EnB: Enable and PWM Input for Motor B (Remove jumper for software speed loop tuning)

    Package Includes :

    1 x L298N H-Bridge Dual Motor Driver, Stepper Motor Driver Module

    Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

    Product Images are shown for illustrative purposes only and may differ from the actual product.
