Servo Motor Micro MG90S 180 Degree Rotation
Inhouse Product
-
৳120.00
Reviews & Ratings
Highlights:
- 180° Precise Rotation
- Durable Metal Gear Train
- High Torque Micro Servo
- Fast Response & Smooth Operation
- Operating Voltage: 4.8V–6V
- Standard 3-Wire PWM Control
- Compatible with Arduino, ESP32, Raspberry Pi & STM32
Note: The component, color & shape of the motor may vary depending on our stock rotation.
📦 Product Description
Servo Motor Micro MG90S 180 Degree Rotation হলো একটি compact, high-torque micro servo motor যা metal gear transmission এবং precise position control-এর জন্য পরিচিত। জনপ্রিয় SG90 servo-এর তুলনায় MG90S-এ metal gears ব্যবহৃত হওয়ায় এটি অধিক durable, শক্তিশালী এবং দীর্ঘ সময় নির্ভরযোগ্যভাবে কাজ করতে সক্ষম।
এই servo motor প্রায় 180° rotation সমর্থন করে এবং PWM (Pulse Width Modulation) signal-এর মাধ্যমে নির্ভুলভাবে angle control করা যায়। Arduino, ESP32, Raspberry Pi, STM32 এবং অন্যান্য microcontroller-এর সাথে সহজেই interface করা যায়। Robotic Arm, RC Car, RC Plane, Pan-Tilt Camera, Smart Robot এবং বিভিন্ন automation project-এর জন্য এটি একটি আদর্শ পছন্দ।
Product Images are shown for illustrative purposes only and may differ from the actual product.
⭐ Key Features
- 180° Position Control

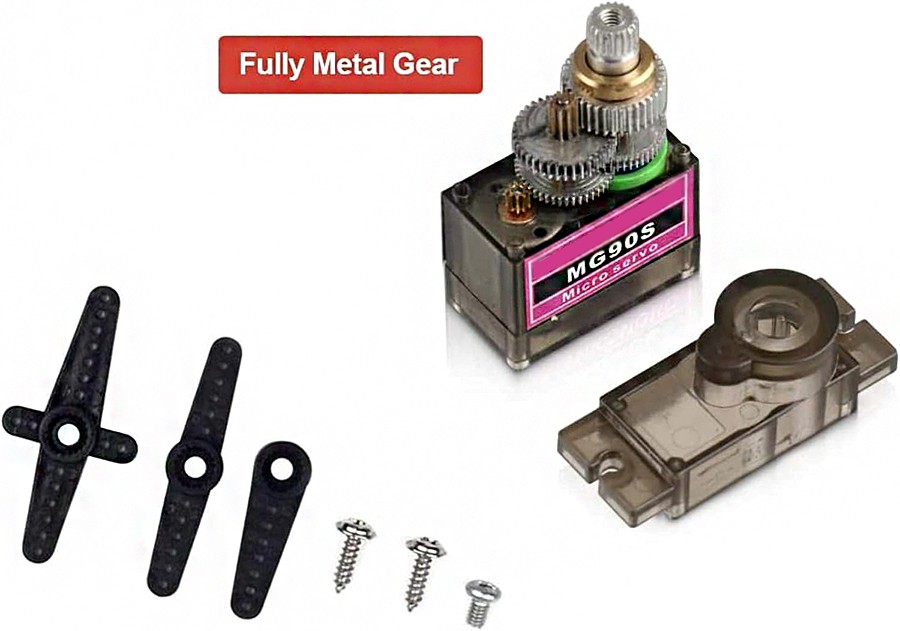

- Durable Metal Gear Construction
- High Torque Output
- Lightweight & Compact Design
- Fast Operating Speed
- Standard PWM Servo Control
- Full Ball Bearing Design
- Low Noise Operation
- JR Compatible 3-Pin Connector
- Easy Integration with Popular Development Boards
🔧 Applications
- Robotic Arms
- RC Cars & Boats
- RC Airplanes & Helicopters
- Pan-Tilt Camera Systems
- Arduino & ESP32 Projects
- DIY Robotics
- Automation Projects
- STEM Education
Wire Description
RED – Positive (VCC)
Brown – Negative (GND)
Orange – Signal (PWM)
📊 Technical Specifications
| Specification | Details |
|---|---|
| Model | MG90S |
| Rotation Angle | 180° |
| Gear Type | Metal Gear |
| Operating Voltage | 4.8V–6V DC |
| Stall Torque | 1.8 kg·cm @ 4.8V, 2.2 kg·cm @ 6V |
| Operating Speed | 0.10 sec/60° @ 4.8V, 0.08 sec/60° @ 6V |
| Control Signal | PWM |
| Connector | 3-Pin (JR Type) |

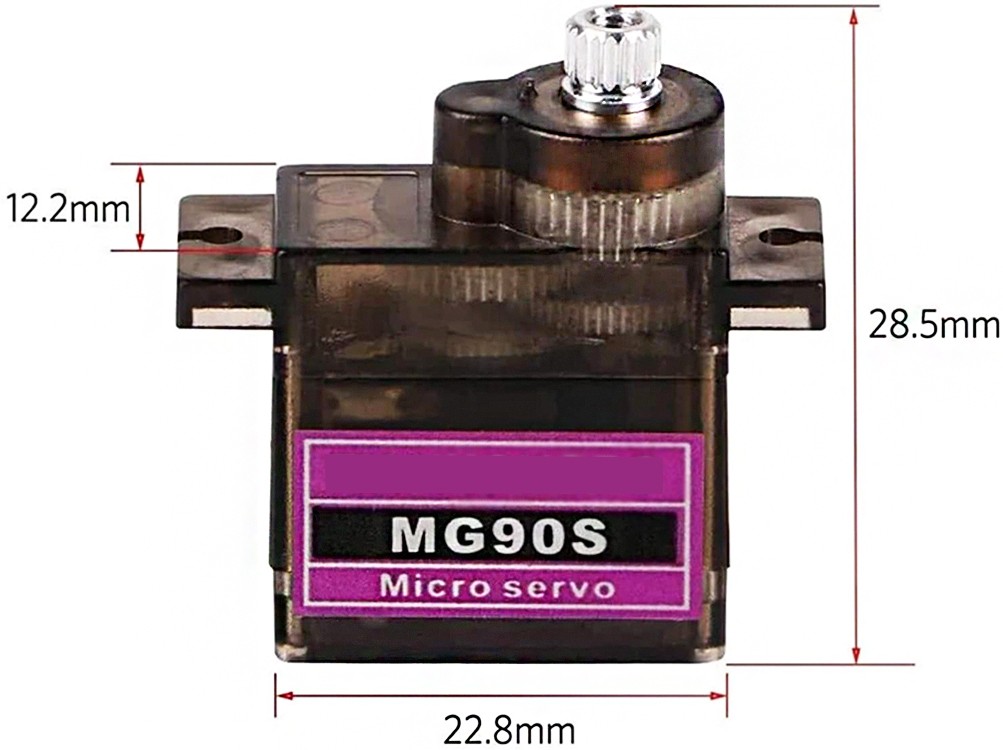

| Dimensions | 22.8 × 12.2 × 28.5 mm |
| Weight | Approx. 13 g |
| Cable Length | Approx. 25 cm |
Specifications may vary slightly depending on the manufacturer and production batch.

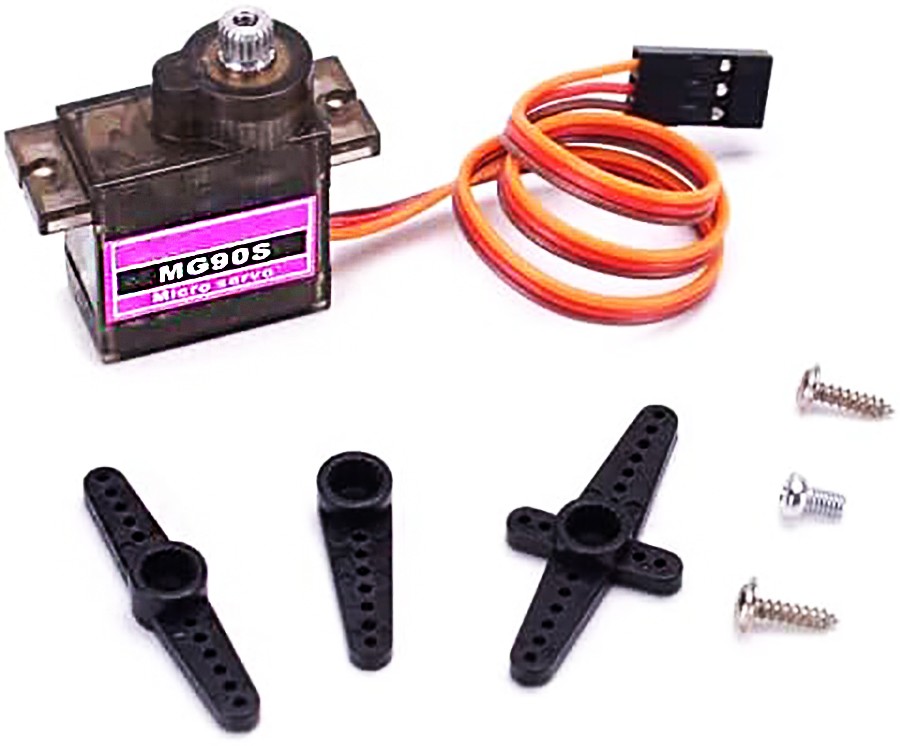

📦 Package Includes
- 1 × MG90S Micro Metal Gear Servo Motor
- 1 × Servo Horn Set
- 1 × Mounting Screw Set
⚠️ Important Notes
- Recommended operating voltage is 4.8V–6V DC.
- For multiple servo motors or high-load applications, use an external regulated power supply instead of powering directly from the Arduino board.
- Avoid applying loads beyond the rated torque to extend the servo's lifespan.
- Product images are shown for illustrative purposes only and may differ from the actual product.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
PRODUCT IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY. ACTUAL PRODUCT APPEARANCE, COLOR, PACKAGING AND COMPONENT LAYOUT MAY VARY DEPENDING ON THE MANUFACTURER AND PRODUCTION BATCH. |
