TCRT5000L Infrared Reflective Sensor
Inhouse Product
-
৳120.00
Reviews & Ratings
Highlights:
- Reflective IR Optical Sensor
- Integrated IR LED & Phototransistor
- Up to 15mm Detection Range
- Fast Response Time
- Compact Through-Hole Design
- High Ambient Light Immunity
- Ideal for Line Following & Object Detection
Product Images are shown for illustrative purposes only and may differ from the actual product.
📦 Product Description
TCRT5000L IR Reflective Optical Sensor একটি compact এবং reliable infrared reflective sensor, যা IR emitter এবং phototransistor-কে একটি single package-এর মধ্যে একত্রিত করেছে। এটি emitted infrared light কোনো বস্তুর উপর প্রতিফলিত হলে তা শনাক্ত করে object presence, surface reflection এবং line detection-এর মতো কাজে নির্ভুল output প্রদান করে। দীর্ঘ lead version হওয়ায় PCB mounting ও custom circuit design আরও সহজ হয়।
Sensorটি visible light blocking filter ব্যবহার করে, ফলে ambient light-এর প্রভাব কমে এবং detection আরও stable হয়। সর্বোচ্চ 15mm পর্যন্ত reflective sensing range এবং দ্রুত response time-এর কারণে এটি line follower robot, encoder system, paper detection, object sensing, automation এবং DIY electronics project-এ ব্যাপকভাবে ব্যবহৃত হয়। Arduino, ESP32, STM32, Raspberry Pi অথবা অন্যান্য microcontroller-এর সাথে সহজেই interface করা যায়।
⭐ Key Features
- Integrated IR LED & Phototransistor
- Reflective Object Detection
- Detecting Distance up to 15mm
- Peak Operating Distance: 2.5mm
- 950nm Infrared Emitter
- Visible Light Blocking Filter
- Fast Response & Stable Performance
- Compact Through-Hole Package
- Long Lead Version (TCRT5000L)
- Suitable for Custom PCB Designs
🔧 Applications
- Line Follower Robots
- Object Detection Systems
- Shaft Encoder Projects
- Paper & Surface Detection
- Position Sensing
- Automation Systems
- DIY Electronics Projects
- Robotics & Embedded Systems
📊 Technical Specifications
| Specification | Details |
|---|---|
| Model | TCRT5000L |
| Sensor Type | Reflective Optical IR Sensor |
| Output Type | Phototransistor |
| Emitter Type | Infrared LED |
| Emitter Wavelength | 950nm |
| Detecting Method | Reflective |
| Peak Operating Distance | 2.5mm |
| Detection Range | 0.2–15mm |
| Operating Voltage | 3.6–5V DC (Typical Circuit) |
| Forward Current | 60mA (Max) |
| Collector Current | 100mA (Max) |
| Collector-Emitter Voltage | 70V (Max) |
| Operating Temperature | -25°C to +85°C |

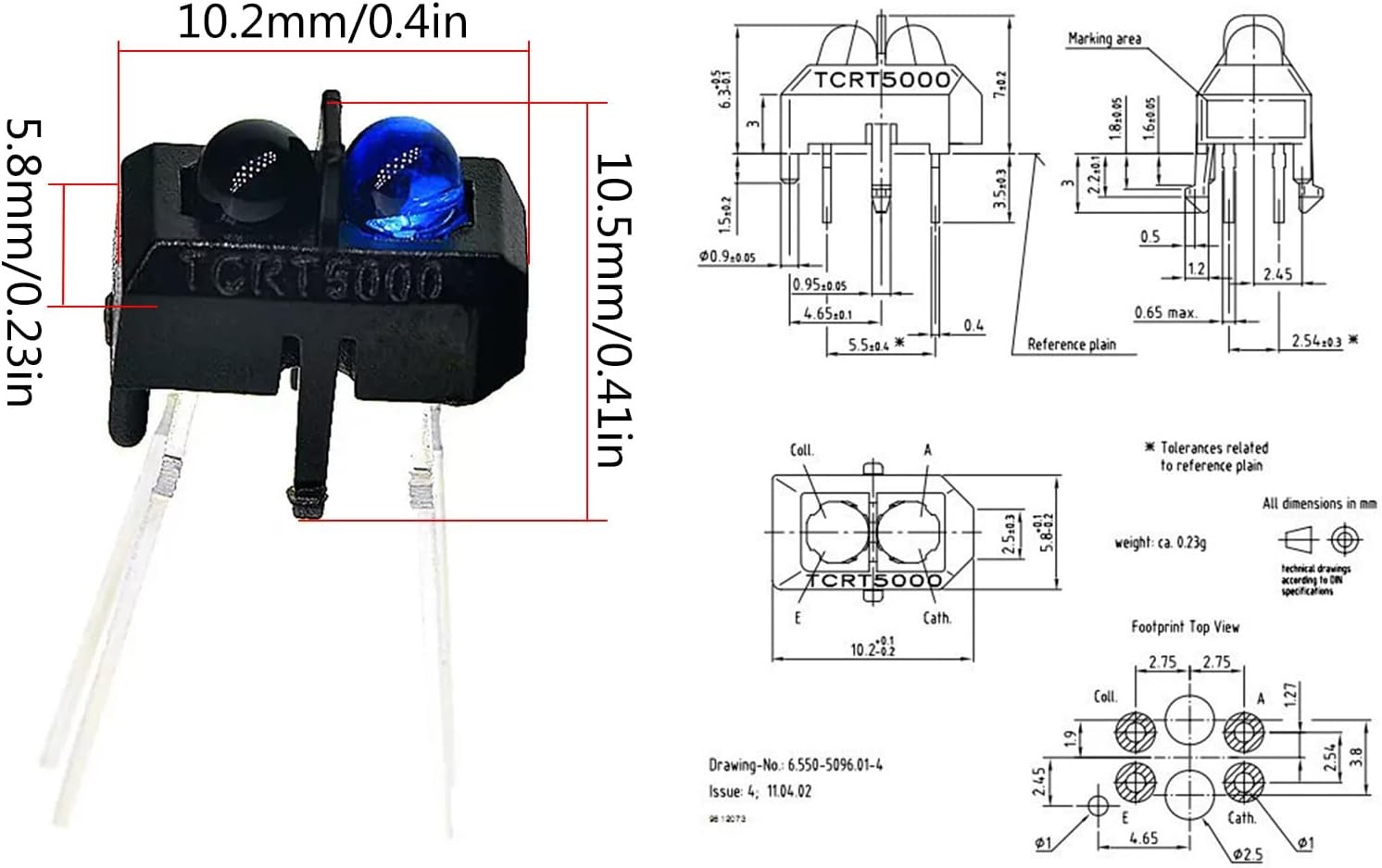

| Dimensions | 10.2 × 5.8 × 7mm |
📦 Package Includes
- 1 × TCRT5000L IR Reflective Optical Sensor
⚠️ Important Notes
- This is a bare sensor, not a ready-to-use module. External resistor and signal conditioning circuit are required for operation.
- Best sensing performance is achieved at a distance of approximately 2.5mm from the target surface.
- Detection range varies depending on the target's color, reflectivity, and ambient lighting conditions.
- Product images are shown for illustrative purposes only and may differ from the actual product.
