RC522 RFID Card Reader Module Kit (Android NFC Supported)
Inhouse Product
-
৳120.00
Reviews & Ratings
Highlights:
- Based on MFRC522 RFID IC
- Supports 13.56MHz RFID & NFC Cards
- Android NFC Compatible
- SPI Communication Interface
- Low Power Consumption
- Compatible with Arduino, ESP32, STM32 & Raspberry Pi
Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Description
RC522 RFID Card Reader Module Kit (Android NFC Supported) হলো একটি জনপ্রিয় 13.56MHz RFID/NFC reader module, যা access control, attendance system, smart lock, cashless payment prototype এবং IoT-based identification projects-এর জন্য আদর্শ। এটি MFRC522 chip-এর উপর ভিত্তি করে তৈরি এবং SPI interface-এর মাধ্যমে Arduino, ESP32, STM32, Raspberry Pi ও অন্যান্য microcontroller-এর সাথে সহজেই সংযুক্ত করা যায়।
এই kit-এর সাথে সাধারণত একটি RFID card এবং একটি RFID key fob (tag) থাকে, যা দ্রুত project development শুরু করতে সহায়তা করে। এছাড়াও Android NFC-enabled smartphone দিয়ে নির্দিষ্ট NFC tag ও card পড়া বা পরীক্ষামূলকভাবে ব্যবহার করা সম্ভব, ফলে NFC-based application development-এর জন্যও এটি একটি চমৎকার সমাধান।
⭐ Key Features
- MFRC522 high-performance RFID reader IC
- Supports 13.56MHz ISO/IEC 14443 Type A cards
- Android NFC supported
- SPI communication interface
- Fast and reliable card detection
- Low power consumption
- Compact PCB design
- Easy integration with Arduino, ESP32, STM32 and Raspberry Pi
- Suitable for embedded systems and IoT projects
🤖 Applications
- RFID Door Access Control
- Attendance Management System
- Smart Lock System
- Electronic Payment Prototype
- Student ID Projects
- Asset Tracking
- NFC Learning & Development
- Home Automation
- IoT Authentication
- DIY Robotics Projects
📊 Technical Specifications
| Specification | Details |
|---|---|
| Model | RC522 |
| RFID IC | MFRC522 |
| Operating Voltage | 3.3V DC |
| Operating Frequency | 13.56 MHz |
| Communication Interface | SPI |
| Protocol | ISO/IEC 14443 Type A |
| Reading Distance | Up to 5 cm (Typical) |
| Data Rate | Up to 10 Mbps |
| Operating Current | Approx. 13–26 mA |
| Operating Temperature | -20°C to +80°C |

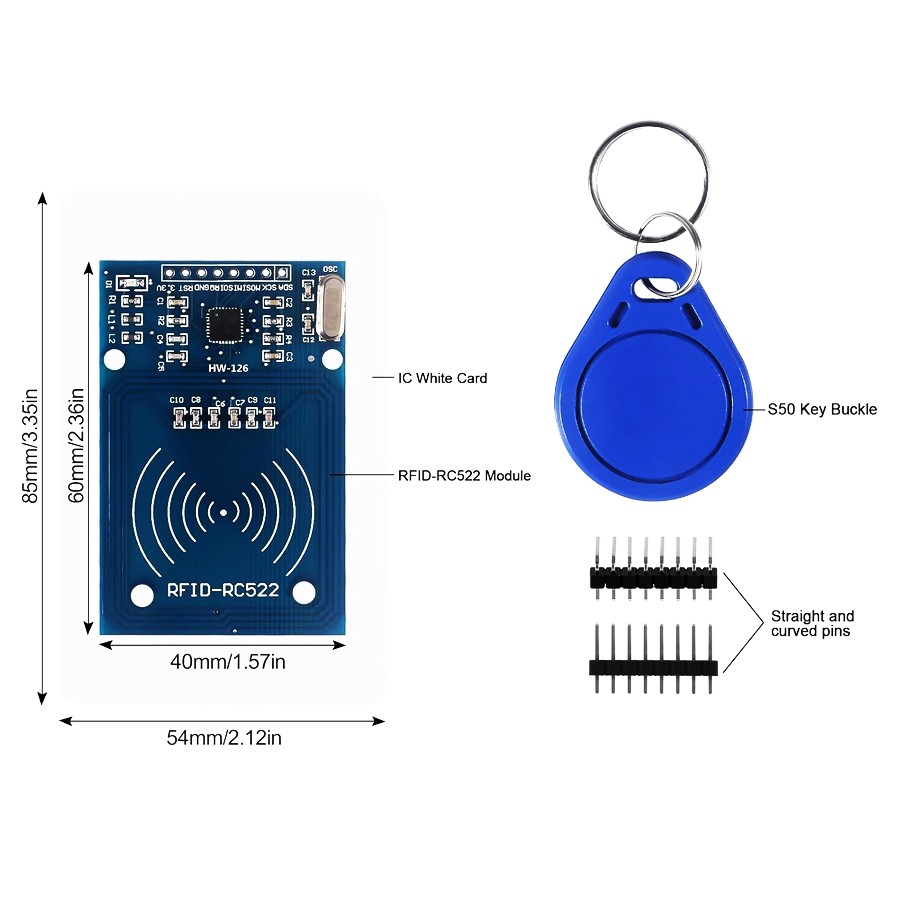

| Dimensions | Approx. 40 × 60 mm |

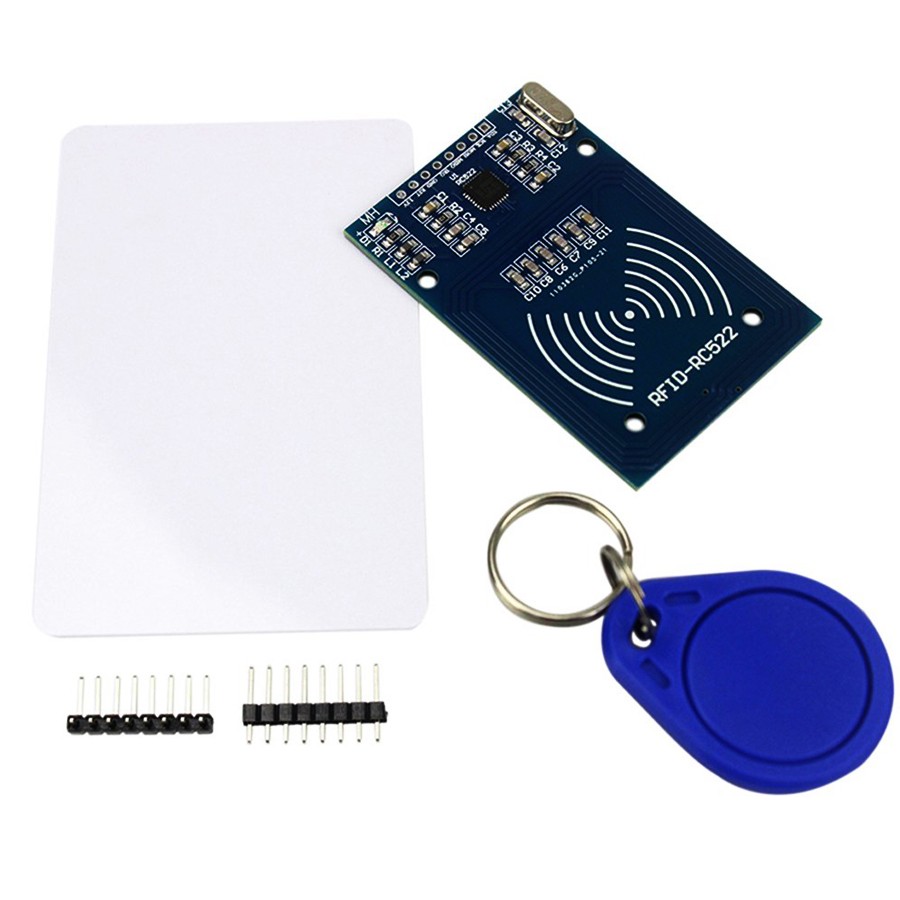

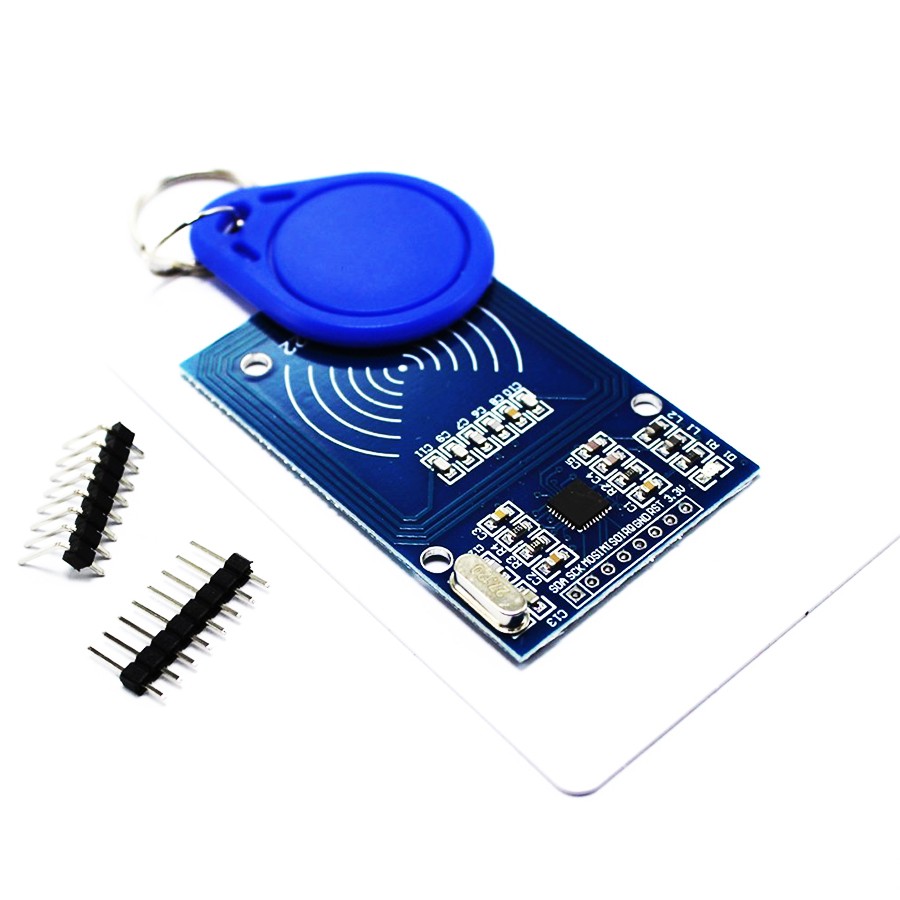

📦 Package Includes
- 1 × RC522 RFID Reader Module
- 1 × 13.56MHz RFID Card
- 1 × 13.56MHz RFID Key Fob (Tag)
- 1 × Straight Pin Header
⚠️ Important Notes
- The module operates at 3.3V. Avoid connecting the power pin directly to 5V, as it may damage the module.
- Reading distance depends on the RFID card/tag quality and surrounding environment.
- Product images are for illustrative purposes only. Actual product appearance may vary depending on the manufacturing batch.
- Compatible only with 13.56MHz RFID/NFC cards (ISO14443 Type A). It does not support 125kHz RFID cards.
